HeadRush Pedalboard Multi FX Guitar Processor
Move your mouse over image or click to enlarge
HeadRush Pedalboard Multi FX Guitar Processor HeadRush Pedalboard Multi FX Guitar Processor Angle HeadRush Pedalboard Multi FX Guitar Processor Display HeadRush Pedalboard Multi FX Guitar Processor Side HeadRush Pedalboard Multi FX Guitar Processor Rear HeadRush Pedalboard Multi FX Guitar Processor Labels HeadRush Pedalboard Multi FX Guitar Processor Lifestyle

HeadRush Pedalboard Multi FX Guitar Processor

The Headrush Pedalboard is a guitar multi effects pedal and modelling processor that contains all of the guitar effects, amp modelling ..

Read More



The Headrush Pedalboard is a guitar multi effects pedal and modelling processor that contains all of the guitar effects, amp modelling tools and tone shaping you'll ever need. All in one place, at a price that won't break the bank!

Winner of the Prestigious Music Inc. Product Excellence Award, 2017!

With the rising trend in Amp and Effects modelling processors in recent years, accurately recreating the perfect sound for all of your studio, session and live work is now just a few footsteps away.

The HeadRush Pedalboard is powered by a finely-tuned quad-core processor, and is powered by the exclusive Eleven HD Expanded DSP software.  This excellent Guitar Amp & FX Modelling Processor delivers incredibly versatile and realistic sounding amplifier, cabinet, mic and FX models available in a tour-ready chassis.

The bright and clear 7-inch full-colour touch display allows you to instantly create and edit your rigs through the simple process of touch, swipe, drag and drop functions.

Other features include gapless preset changes with reverb and delay spillover, an in-built looper with up to 20 minute recording capacity, custom IRS loading options, and exclusive original boutique effects that can't be found anywhere else.

Headrush Pedalboard Key Features

  • Guitar FX, amplifier, cabinet and microphone modeling processor
  • 7-inch high-resolution touch display and intuitive guitarist-centric user interface
  • Finely-tuned quad-core DSP system powered by Eleven HD Expanded
  • 33 amplifier, 15 cabinet, 10 microphone, 6 distortion, 5 dynamic/EQ, 11 modulation, 7 reverb/delay, 8 rotary and 5 expression models
  • Smooth and gapless preset switching with reverb and/or delay tail spillover
  • 12 footswitches with assignable colour LEDs and OLED scribble-strip displays to provide rig feedback

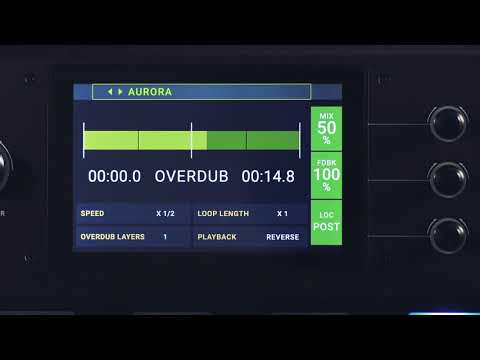

  • Looper with 20 minutes of record time; individually peel layers in the reverse order that they were added
  • Load custom or 3rd-party guitar cabinet IRs (impulse response files); exclusive Celestion IR download included
  • 'Hands-Free Mode' - make quick parameter changes using the expression pedal
  • Directly record and re-amp (up to 24-bit 96kHz) using the integrated USB audio interface
  • ¼-inch guitar input; ¼-inch expression pedal input; 5-pin MIDI input and output
  • (2) balanced XLR outputs with ground-lift; (2) ¼-inch TRS outputs with amp/line level switch
  • ¼-inch stereo FX loop conveniently integrates pedals and outboard gear at any point in the signal chain
  • Aux input for playing along with a mobile device; headphone output for private monitoring
  • Housed in a durable road-ready steel chassis with integrated cable channel organizer

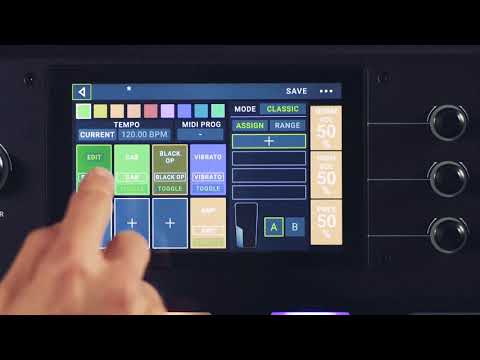

7-Inch Touch Display

For the modern smart-phone age, the easy-to-use touch display is so intuitive to use that most of you won't even need to read the instructions - simply touch, swipe, drag & drop your options to instantly create and edit rigs as accurately as you wish with as much ease as rearranging the icons on your phones home screen.  The easy-to-read screen gives you plenty of clear feedback during performances, especially when making use of 'Hands-Free Mode' to tweak your settings with the expression pedal.  Everything about this processor has been designed specifically to make it simple, fast and intuitive to jump right in and begin using effectively straight out of the box.

Express Yourself

The HeadRush Pedalboard comes complete with 2 banks of expression pedal mappings per rig, and up to 4 parameter assignments per bank, presenting you with unprecedented scope to switch your sound on the fly.  Assigning pedal parameters to the Expression Pedal is as easy and intuitive as anything else with this board,

All The Connections You Need

The connection capabilities of the HeadRush Pedalboard help it to assimilate seamlessly into your current rig.  Complete with a standard guitar input, 2 XLR outputs (w/ ground lift switch), 2 TRS outputs that are switchable between amp or line level, 5-Pin MIDI in/out, plus an onboard stereo FX loop allowing you to continue using your own external effects pedals and outboard gear at any point in the signal chain!

Studio Essential

The HeadRush Pedalboard comes complete with a studio-grade 24-bit 96kHz on-board USB audio interface to help you take your recording to the next level.  Capture every subtle nuance of your performance with the unparalleled tone-sculpting capability of the Eleven HD Expanded DSP software, allowing you to record both processed and direct signals, reamp dry signals from your computer and focus on fine-tuning your signature sound.

Custom/3rd Party IR Support

Further expand your available guitar cab sounds with 3rd party IR files which you can load directly to your HeadRush Pedalboard.  HeadRush themselves have teamed up with Celestion to include an exclusive download to get you started, but the Pedalboard also supports ALL OTHER 48kHz - 192kHz, 16-32 bit mono .WAV and .AIFF type IRs up to 2048 samples.

Tour Ready

Housed in a durable road-ready steel chassis with a cable route built into the bottom to help keep your stage tidy, the HeadRush Pedalboard includes many thoughtful features for use on stage including incredibly bright color-assignable LEDs and OLED scribble strips that show each of the 12 footswitches' current assignment and status for each rig. You can even drag-and-drop to create set lists (custom orders of rigs) for your gigs. The HeadRush Pedalboard is a truly convenient and compact way to bring all of the best classic vintage and modern gear you will ever need to stages near or far without breaking the bank or your back.

In Conclusion

If you're a mid-to-advanced-level guitar player searching for a full-featured amp, cab, mic and FX modelling processor for both live and studio environments, then the HeadRush Pedalboard is definitely for you.  In addition to the features highlighted above it comes complete with a robust metal chassis, making it perfect for life on the road, and unlike competitors the HeadRush Pedalboard presents all information in a guitarist-friendly, familiar layout to provide a hassle-free and rapid learning curve.

Firmware V2.0 - New Amp Models & Effects, Enhanced Functionality And Much More

Firmware 2.0 delivers 7 stunning new classic amp models, 160 new HeadRush exclusive cabinet IRs, multiple new FX and greatly-enhanced operational versatility. The new 2.0 updates are in direct response to requests from HeadRush's enthusiastic user community and these latest additions will take the Pedalboard's performance and flexibility to an even higher level.

Added 7 new amp models to the Amp category:

  • '66 FLIP BASS
  • '82 LEAD 800 50W
  • '82 LEAD 800 TS MOD
  • '85 M-2 LEAD CAP MOD

Added 160 new HeadRush Exclusive Cab IRs (impulse responses) to the IR category, based on the following cabinets:

  • '60S 412
  • BIRCH 115
  • BIRCH 410
  • BLACK LINE 810
  • FAWN 212
  • TREAD 412

Added 4 new FX to the Modulation category:



Effects33 amp, 15 cab, 10 mic, 6 distortion, 5 dynamic/eq, 11 modulation, 7 reverb/delay, 8 rotary and 5 expression models
USB ConnectionYes
Warranty2 years
