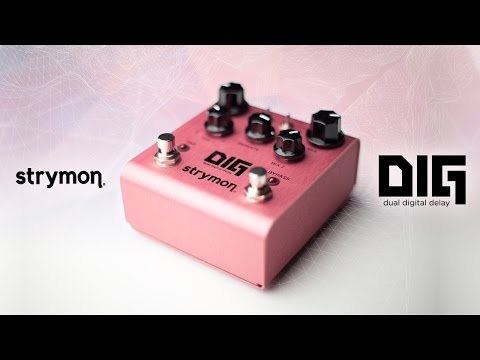

Strymon DIG Dual Digital Delay

With so many great delay pedals out there, is there really need for another one? Well, when it comes to Strymon the answer is a big fat YES! Once again, they've managed to innovate and come up with something totally unique and original - the Strymon DIG Dual Digital Delay, an extremely versatile digital delay that brings back the eighties' rack delay sounds, but updated for the modern player, and as a compact pedal!

Effortlessly create your own world of intricate and synchronized echoes, along with hypnotic and atmospheric repeats that blur the line between delay and reverb. Stretch your sonic horizons with five musically satisfying rhythmic subdivisions and three dual delay routing options.

Go from syncopated, pulsating delay patterns, to evocative, spaced-out echo trails all in a compact, pedalboard-friendly format.

Back to the Future.

Rack-mount digital delays of the '80s ushered in a new era of audio effects. The innovative electronic designs generated the cleanest delays yet to be heard, but also created their own special and intriguing sonic characteristics. Thirty-plus years later, these sounds remain as distinctive and inspiring as ever. Our thorough investigation of digital delay technology reveals the unique personalities that these delays possess. Delve into DIG’s three digital delay voicings: the early '80s adaptive delta modulation mode, the mid-'80s 12 bit pulse code modulation mode, and the modern high-resolution 24/96 mode. Multiply these distinct voicings by two and get DIG—your perfect dual delay ally.

Three types of Digital Delays!

No, digital delays are not always the same, and the Strymon DIG gives yuo three different kinds of delay voicings to experiment with:

• ADM – A one bit, high sample rate conversion technique that evolved from telecommunications voice coding. The conversion and supporting signal conditioning, limiting, and pre-emphasis/ deemphasis create a percussive wide-band delay that adds more character when input dynamics increase.
• 12 bit - A 12 bit, 32kHz PCM conversion made possible by monolithic IC chips developed in the late '70s. Pre-emphasis/de-emphasis and companding combine with the converters to produce a warm delay with a dimensional sense.
• 24/96 – A clean, high-resolution, high-bandwidth delay with a hint of dynamics that allow the delay to sit nicely with the analog dry signal. 24 bit resolution and a 96kHz sampling rate ensure uncolored, artifact-free repeats.

Two delays join forces

Free-running delay time allows you to easily dial in delays from 20ms to 1.6s with the Time knob or Tap Tempo switch. Longer delay times lend themselves to more ambient soundscapes while doubling and slapback effects can be achieved at short delay times.

Set the ratio between the two delays with one of five rhythmic subdivisions: triplet, eighth note, dotted eighth note, dotted quarter note, and the golden ratio. Don’t want synchronization? Engage Free Mode to disable subdivisions and allow Delay 2 to be its own independent, free-running delay. Dial in short delay times for chorus/flange sounds to run alongside Delay 1.

Series, Parallel, Ping Pong

Set up your two delays in one of three configurations. Series is like setting up pedals in a chain on your board, feeding Delay 2 into Delay 1. Parallel will orient your delay lines so that they remain independent—Delay 1 in the left channel and Delay 2 in the right channel. With Ping Pong, each delay acts as a ping pong delay, interacting together when both Mix knobs are turned up.

Free Mode

Don’t want your delays to be synchronized? Free Mode disables time sync and subdivisions between Delay 1 and Delay 2, giving the Time 2 knob a full delay range from 20ms to 1.6s.

Circular Repeats

Holding down the TAP footswitch enables circular repeats, where both delay lines maintain a static volume and repeat continuously until the TAP footswitch is disengaged. At this point, all previous settings will be restored.

Expression Pedal

Input allows for the connection of either an expression pedal, external tap, or Favorite switch. Plug in an expression pedal and control any one knob with your foot. Plug in an external tap pedal to remotely tap in your tempos. Plug in a Favorite switch to save and recall a favorite preset.

TRS Stereo Input

We know that there are some out there that like to run stereo rigs. This is why we've added the option of running the input of your DIG in stereo. Flip a jumper inside your pedal, use a TRS splitter cable, and now you've got yourself a stereo input.

SPECS:

• Two simultaneous, integrated delays, with unique digital rack delay voicings
• Five dual delay adjustment and tone shaping knobs: Time, Time 2, Mix, Mix 2, Repeats
• One modern and two classic digital delay voicings: 24/96, adm, 12 bit
• Five rhythmic subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter
• Three choices for delay line modulation: Off, Light, Deep
• Five “hidden” knobs for deep dual delay control: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats
• Selectable Free Mode disables subdivisions and synchronization
• Press and hold Circular Repeats effect
• 20ms - 1.6s delay range (40ms - 3.2s with Half Note Delay 1 Subdivision)
• High impedance mono input, with selectable TRS stereo input
• Stereo output
• Three signal routing configurations: Series, Parallel, Ping Pong
• Tap tempo and Bypass footswitches
• Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter), external tap pedal (for remote control of tempo), or Favorite switch (to save a Favorite preset)
• Super low noise, high performance 24-bit 96kHz A/D and D/A converters
• 115db typical signal to noise
• Analog dry path for a zero latency dry signal that is never converted to digital
• +8dBu maximum input level easily handles instrument and line signals
• 20Hz to 20kHz frequency response
• Premium analog front end and output section
• Super high performance SHARC DSP in a compact form factor
• 32-bit floating point processing
• True Bypass (electromechanical relay switching)
• Selectable Trails Mode with high quality, transparent Analog Buffered Bypass mode
• 9V center negative DC power supply included, 250mA current draw
• Strong and lightweight anodized carnation pink chassis
• Designed and built in the USA
