Overview

The Moog Sub 37 Tribute synthesizer is the latest incarnation of the legendary analog synths produced by Moog's founder, Bob Moog. Includes new features including Duo Mode, which allows oscillator 1 and oscillator 2 to be played independently, programmable arpeggiator/step sequencer, two modulation buses with assignable source and destination options, access to 256 presets, and a 37 note velocity sensitive keyboard with after-touch. A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback - which feeds the output of the filter directly back to the input of the mixer. Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function. And like the Sub Phatty, the Sub 37 Tribute includes a free standalone/plugin editor that is compatible with all major plugin formats - creating seamless integration between analog synth and DAW for total control, recall, and automation of every parameter.

  • Perform in Mono or Duo modes
  • 37-note velocity sensitive keyboard w/ aftertouch
  • 2 modulation busses w/ assignable source and destinations
  • DAHDSR (Delay, Attack, Hold, Decay, Sustain, Release) looping envelopes with sync
  • 256 Presets -16 banks of 16 patches
  • Syncable Arpeggiator and Step Sequencer
  • Classic Moog Ladder Filter with resonance, MultiDrive, and selectable filter slopes.

The Sub 37 Tribute's new features include Duo Mode, which allows oscillator 1 and oscillator 2 to be played independantly, programmable arpeggiator/step sequencer, two modulation busses with assignable source and destination options, access to 256 presets, and a 37-note velocity sensitive keyboard with aftertouch.

A fully featured mixer section contains dedicated controls and mutes for each sound source, as well as a level control for External audio input and Feedback - which feeds the output of the filter directly back to the input of the mixer.

Also included are the powerful DAHDSR envelopes from the Sub Phatty with panel control of each extended function.

Specifications

  • Sound Engine: 100% Analog
  • Polyphony: Selectable Monophonic or Paraphonic
  • Keybed: 37 Note Semi-weighted with After Pressure
  • LCD: 128 X 64 pixel LCD with white backlight
  • Controller: Pitch Bend, Mod Wheel, After Pressure, Velocity
  • Sound Sources: 2 Variable Waveshape Oscillators, 1 Square Wave Sub Oscillator, 1 Analog Noise Generator, 1 External Input/Filter Feedback
  • Oscillator Calibration Range: 22Hz-6.8KHz. Note range at 8’ = 18 - 116
  • Glide Module: Assign to Osc1/Osc2/Both. Type - LCR, LCT, EXP, Gated, Legato
  • Filter: 20Hz-20KHz Moog Ladder Filter w/ 6/12/18/24 dB/Oct Filter Slopes and MultiDrive
  • Transposition: +/- 2 Octaves
  • Arpeggiator /Sequencer: Up, Down, Order, Random, Latching, Back/Forth, Invert, +/-2 Range, Tie, Rest, MIDI Sync, 64-note sequencer

MODULATION BUSSES:

  • Sources: LFO (Triange, Square, Saw, Ramp, Sample & Hold), Filter EG/PGM
  • Programmable Sources: Amp Env, Constant ON, Sine LFO, Noise LFO, Osc 1 Pitch, Osc 2 Pitch, Seq Note, Seq Vel, and Seq Mod.
  • Destinations: Osc 1 Pitch, Osc 2, Osc 1 & 2 Pitch, Filter, LFO Rate, VCA Level, Osc 1 Wave, Osc 2 Wave, Osc 1 & 2 Wave, Noise Level, EG Time/PGM
  • Programable Destinations: Filter Resonance, Filter Drive, Filter Slope, Filter Env Amount, Filter Keyboard Amount, Osc 1 Level, Sub Osc Level, Osc 2 Level, External In/Feedback Level, Osc 1 On, Sub Osc On, Osc 2 On, Noise On, External In/Feedback On, Arp Rate, Arp Clock Division, Arp Range, Arp Back/Forth, Arp Ends, Arp Invert, Arp Gate Length, Arp Run, Glide Time, Glide OSC Choice, Glide Type, Glide Gate, Glide Legato, Glide On, LFO 1 Clock Division, LFO 1 Range, LFO 1 Sync, LFO 1 Keyboard Reset, LFO 1 Keyboard Track, Mod 1 Pitch Amount, Mod 1 Filter Amount, Mod 1 Programmable Amount, Mod 1 Programmable Destination, LFO 2 Clock Division, LFO 2 Range, LFO 2 Sync, LFO 2 Keyboard Reset, LFO 2 Keyboard Track, Mod 2 Pitch Amount, Mod 2 Filter Amount, Mod 2 Programmable Amount, Mod 2 Programmable Destination, Osc 1 Oct, Osc 2 Sync, Osc 2 Keyboard Reset, Osc 2 Oct, Osc 2 Keyboard Control, Osc 2 DUO Mode, Osc 2 Freq, Osc 2 Beat Freq, Filter Env Attack, Filter Env Decay, Filter Env Sus, Filter Env Release, Filter Env Delay, Filter Env Hold, Filter Env Vel Amount, Filter Keyboard Track, Filter Env Multitriggering, Filter Env Reset, Filter Env Sync, Filter Env Loop, Filter Env Latch, Amp Env Attack, Amp Env Decay, Amp Env Sus, Amp Env Release, Amp Env Delay, Amp Env Hold, Amp Env Vel Amount, Amp Keyboard Track, Amp Env Multitriggering, Amp Env Reset, Amp Env Sync, Amp Env Loop, Amp Env Latch, Output Volume, Bend Up, and Bend Down.
  • LFO Panel Features: Hi/Low Range from .01Hz–1kHz, MIDI Sync, KB Reset
  • Envelopes: DAHDSR Envelopes with Multi-Trigger, Reset, Looping, MIDI Sync, Latch, and Variable control of EG Delay, Hold, Velocity Amount, KB Tracking.

INPUTS/OUTPUTS:

Audio Input: 1xTS
Audio Outputs: 1xTS, 1xTRS Headphone with separate volume control
Presets: 256 Presets - 16 Banks x 16 presets
MIDI I/O: DIN In/Out, and MIDI over USB
CV/Gate Inputs: Filter CV, Pitch CV, Volume CV, KB Gate
Power: 110VAC-240VAC Universal Power Supply with IEC connector
Weight: 10kg
Dimensions: 6.75H x 26.75”W x 14.75”D

Specification

SKU116669
Weight11.0000
Software Includedstandalone and daw plugin editor included
MPNSUB-37
USB ConnectionYes
Warranty2 years
Number of Keys37 keys

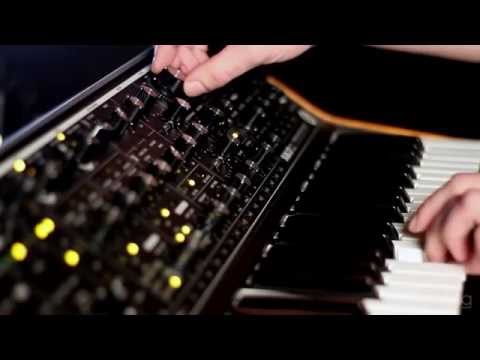

See It In Action
