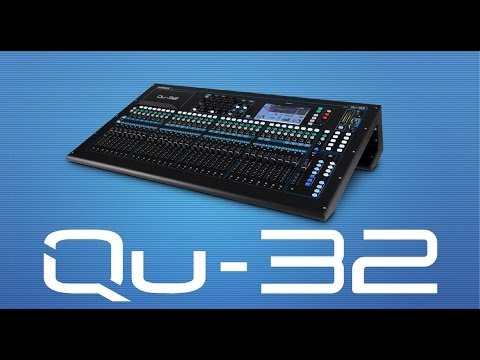

Allen & Heath QU32 Digital Mixer

Allen & Heath QU32 Digital Mixer

With its responsive touchscreen, 33 motor faders and acclaimed AnalogiQ recallable preamps, the Allen & Heath QU-32 combines exceptional..

Read More

Order before 3pm for free next day delivery

Availability Temporarily Out Of Stock
£2,499.00
Trust Pilot Reviews
Excellent Birmingham store service - Dave A****
I was greeted by a chap called Dave and i explained i was interested in buying another guitar, a Fender Stratocaster to be precise. I explained i wanted to try a few options and in particular i was attracted to flashy looking guitars. I selected several to play and Dave took me to a practice room where i spent a couple of hours playing different guitars. His knowledge was excellent and he was very patient. Dave listened to what i wanted as a musician and provided the right equipment when i needed it followed by advice on the differences between each one. I settled on a very good guitar and a couple of pedals. If you are going to buy from PMT, GO TO THE BIRMINGHAM STORE.
Read Reviews

Overview

With its responsive touchscreen, 33 motor faders and acclaimed AnalogiQ recallable preamps, the Allen & Heath QU-32 combines exceptional ease of use with class-leading audio performance. Drawing on the technologies and workflow pioneered on our GLD and iLive touring systems, Qu makes Allen & Heath digital mixing more accessible than ever.

The culmination of years of hard work and painstaking design work. The QU32 takes the crisp and clear sound of Allen And Heath and marry it to best in class digital control and flexibility.

Digital Mixing - Reshaped

At the heart of the QU-32 lies an 800x480 True Colour Touchscreen, which provides detailed real-time information of every parameter of your mix. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more. Complementing the touchscreen is the SuperStrip – a set of single function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan.

QU-32 can also store up to 100 custom scenes - a truly digital mixer should always allow you to recall every parameter in a heartbeat. QU32eatures 33motorized ALPS faders - 32 allow instant access to all input channels and masters over 2 layers, and a dedicated master fader dynamically follows the Mix selection. A third user-defined Custom layer is available for ad-hoc strip layout, where any combination of Inputs, FX Sends, FX Returns, DCA’s and Mix masters can be assigned.

Analogiq PreAmps

The Allen & Heath AnalogiQ preamps are digitally controlled, featuring advanced zero-crossing detection and a padless 1dB ste gain stage. A truly transparent and accurate response, leaving you to manipulate your sound with DSP and powerful EQ as you see fit. The AnalogiQ preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

Automatic Mic Mixer & Profactory Mic Presets

Allen & Heath have designed the QU series to be as straight-forward as possible when it comes to mixing under pressure. Teaming up with some of the industry's leading microphone manufacturers, the A&H ProFactory Mic Presets offer optimal settings for vocals, guitars, drums, brass and woodwind instruments. Quickly choose from the EQ Library for the world's most popular microphones. No Hassle, no fine tuning required. Just plug in and go!

QU-32 also features a proprietary Automatic Mic Mixer (AMM) feature. Reducing background noise and minimising the risk of feedback, AMM helps the engineer to manage the levels of multiple mic inputs, ensuring that each speaker’s contribution is heard clearly. The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers. Up to 16 microphone sources can be mixed at once, with each channel having a priority setting which determines its ‘weight’ in the total system gain.

QU-Drive

Qu-32 has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive. Qu-16’s built-in audio interface streams up to 24 selectable tracks to your Mac or PC and returns from the computer can be easily assigned to the Input channels. The interface is class-compliant on Mac OS X making it truly plug ‘n play and will be recognized straight away by any DAW supporting Core Audio, including Logic, Cubase, Reaper, and Pro Tools.

An ASIO and WDM compatible driver is available for Windows computers. Standard MIDI control is tunnelled over the USB connection so you can map the faders to the tracks of your favourite DAW. A DAW Control driver is available for easy setup and emulation of HUI or Mackie Control protocols on Mac OS X and Windows systems.

Dsnake Remote Audio Racks

Qu-32 is a self-contained mixer, so if you’ve already got the analogue cables you’re good to go. If you’re thinking of trading in the copper multicore for a Cat5 digital snake, Qu-32’s built-in dSNAKE port has you future-proofed, allowing connection to a remote AB168, AR2412 or AR84 Stagebox. dSNAKE is Allen & Heath's proprietary networking solution, boasting a transport latency of only 105us over cable runs of up to 120m / 390’. So if you’re mixing Front of House, you can place your I/O on the stage and run a single Cat5 cable back to the Qu-32 in the mix position.

iLive FX

Qu-32’s dynamics and FX are derived directly from the algorithms in the iLive pro touring series. Some of the world’s most respected audio engineers have chosen to use iLive’s FX on tour in preference to top-end plug-ins and external FX units. Qu-32 boasts 4 stereo iLive FX engines, featuring lovingly crafted emulations of legendary classic reverbs, gated reverbs, delays, modulators and more.

The Full QU Ecosystem

QU is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it’s needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimisation from one centrepiece device.

More Mixes, More Flexibility

Qu-32 provides 4 stereo Groups which can be used as subgroups to the main LR mix for group level and processing, for example to buss-compress an entire drum kit, or to tame multiple lavalier mics with a single graphic EQ. Groups can also be switched to Mix mode to provide additional outputs for monitor mixes.

QU-32 adds 2 further stereo Matrix outputs equipped with full processing to the console’s extensive I/O. A Matrix is a ‘mixer within a mixer’, fed from any combination of Group 1-4, Mix 1-10, and main LR. It can be used to provide a broadcast feed, a recording mix, or duplicate the main outputs for delay stacks, fill or zone speakers where independent GEQ and delay is applied.

Mobile Integration

QU-32 has been designed to offer a seamless mobile mixing experience, compatible with your smartphone or tablet and accompanying QU apps. If you're sound checking in a live environment, referencing your mix via iPad or iPhone can be an invaluable tool for tweaking and adjusting your mix on the fly.

Allen & Heath are one of the few remaining bastions of world class British manufacturing. Their analogue mixers have become synonymous with accuracy, reliability and excellence, and the QU Series follows suit in a digital format. Timeless sound quality combined with cutting-edge technology make these mixers some of the best in the world, period. Combine a feature set with Allen & Heath's history as a trusted, reliable brand used by professionals around the world, and the QU Series is a no brainer for audio professionals in any application.

Specifications:

  • 32 Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQ Preamps
  • 3 Stereo Inputs (TRS)
  • 24 Mix Outputs (XLR)
  • 4 Stereo Groups (switchable to Mix mode)
  • Up to 11 Monitor Mixes (4 mono + 7 stereo)
  • 2 Stereo Matrix Outs
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • AES Digital Out
  • 32×32 USB Audio Interface
  • dSNAKETM Remote Audio Port
  • 33 Motor Faders
  • 7” Touchscreen
  • 10 Soft Keys
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Automatic Mic Mixer
  • Channel Ducker on all inputs
  • ProFactory Mic Presets
  • iLive FX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • Spectrogram to aid feedback elimination and room acoustics
  • Automatic Mic Mixer
  • Qu-Drive Direct Multitrack Recording / Playback on USB drives
  • DAW MIDI Control
  • Qu-Pad iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Qu-Control customisable iOS app for simple wireless control
  • Compatible with ME Personal Mixing System
  • High contrast metallic finish controls, matching premium GLD Chrome series



Specification

SKU126426
Weight23.0000
MPNQU32
Channels32 channels
Warranty2 years
